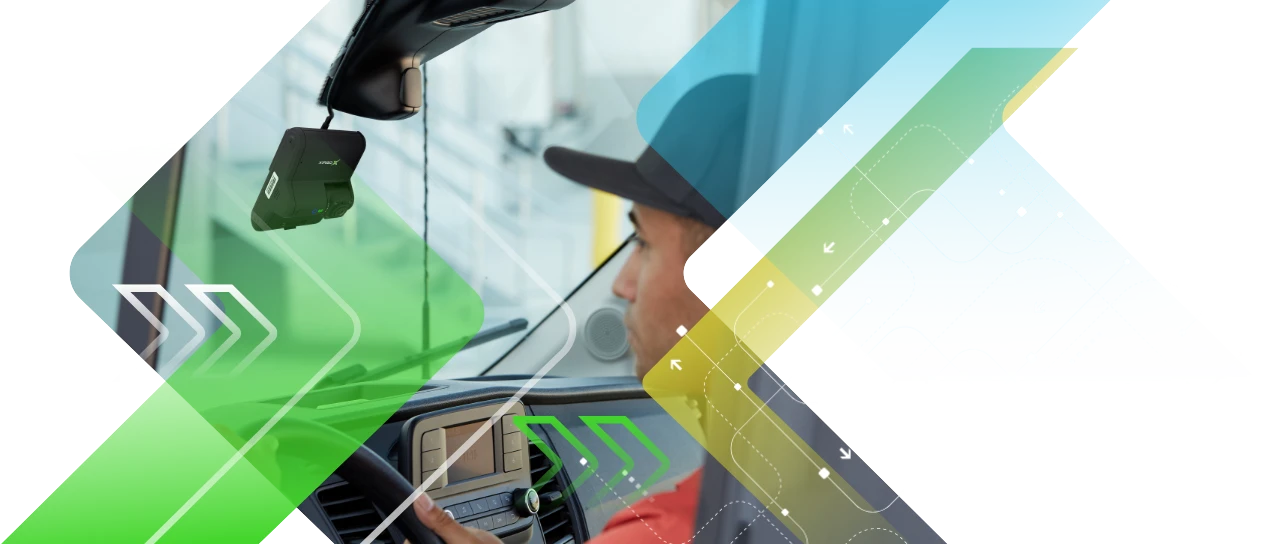

XVD-302
One Device to See the Road, Read the Vehicle and Save the Day.
When it comes to commercial vehicle crashes, the costly repairs, insurance increases and litigation fleets encounter are just the beginning. Safety, uptime, retention, and reputation are also at stake. Fleets need a solution they can count on, mile after mile. Meet the XVD-302.
Safety Intelligence, Delivered
The XVD-302 is a next-generation AI dashcam that runs ADAS and driver monitoring on-device, pulling OEM-proprietary vehicle data through the same single cable.
No second gateway. No second SIM. No second install. Just protection right out of the box.
575K+
Units sold on the KP2 platform the XVD-302 is built on
>99%
North American internal combustion engine vehicles 2015 and newer*
9,800+
Make/model/years of vehicle data coverage across North America, Europe and Latin America.
100+
New make/model/years added
to coverage every month
CVR-Ready
For the United States, the solution is Connected Vehicle Ruling (CVR) Ready*
Edge AI
No Roundtrip to the Cloud. No Compromises. Welcome to Safety AI that Runs on the Edge.
The XVD-302 is a next-generation AI dashcam that runs ADAS and driver monitoring on-device, pulling OEM-proprietary vehicle data through the same single cable.
No second gateway. No second SIM. No second install. Just protection right out of the box.
Road-facing ADAS
Provides forward collision warning, tailgating, pedestrian and cyclist detection, lane departure, and posted stop-sign and speed-limit violations.
Driver-facing DMS
Identifies fatigue and microsleep, distraction and phone use.
Motion & GPS
Detects Harsh braking, acceleration and cornering, overspeed, and high-G events for potential collisions.
Raised ceiling
Offers a next-gen AI platform built with deliberate headroom for new AI models still to come.
Alerts for Isolated Incidents, Escalates Repeated Behaviors
Routing every event to a manager doesn’t scale, so every tier below is configurable, down to whether the driver is alerted at all.
Tier 1
The driver self-corrects
- Driver
- Immediate
- On-device
In-cab alerts name the behavior out loud so the driver adjusts. Most change happens in that moment.
Tier 2
Repeat offenses escalate
- System
- Same Shift
- Configurable
One tailgate might be due to stop-and-go traffic. Three in sixty seconds is a bad habit. Level 2 in-cab alerts or event escalations capture incidents to cut out the noise.
Tier 3
Managers coach with evidence
- Safety Manager
- After the Shift
Only escalate what needs a conversation. The event arrives with video and related vehicle data, for holistic coaching.
Field of View
Smart Perspective:
What the Camera Sees is What the AI Knows
Model quality is bounded by the frame it’s given. Every detection on the XVD-302 (including following distance, a lane edge, eyelids, etc.) can be captured in full HD, with hardware is flexible for every deployment type.

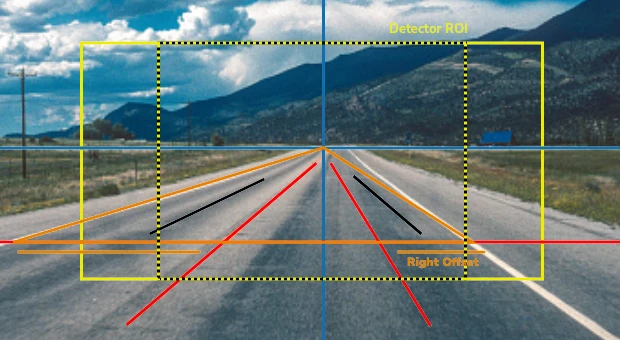

140° Diagonal
- Camera 1 Road-facing
- Built in
- 115°
horizontal - 60°
vertical - 30 fps
max - 1080p
or 720p
Auto-adjusts exposure across full sun, night, rain, snow and dawn/dusk.

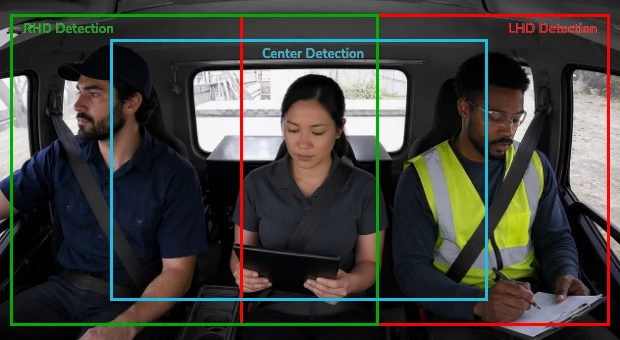

130° Diagonal
- Camera 2
- Driver-facing
- Optional
- 104°
horizontal - 56°
vertical - 30 fps
max - 1080p
or 720p - 4
IR LEDs
Detects three seating positions: left-hand drive, center, and right-hand drive.
A One-and-Done Cable, Not a Second Device
- Driver
- Immediate
- On-device
Getting CAN data to a dashcam normally requires an added gateway: a second box, a second SIM, a second install, a second failure point, and a second line on the bill of materials. The XVD-302 does it with a single plug-and-play cable: OBDPRO.
Traditional: Camera + separate standalone gateway
Up to 7 Years
7.8 Ah 3.6V Li-SOCl₂ primary cell · Based on 1 report/day
- 2x firmware to provision and manage video, plus vehicle coverage updates
- 2x cellular data plans, 2x install (time, cables, in-cab space and cost)
- 2x events (video and vehicle), burdens cloud teams to stitch together
- In most cases, limited standard vehicle data (speed, etc.)
- Significant component duplication and high cost for combined purchases
XVD-302 + OBDPRO Cable
-25°C to +60°C (-13°F to +140°F)
Operating range
- 1x firmware to provision and manage video, plus vehicle coverage updates
- 1x cellular data plan, 1x install (time, cable, in-cab space and cost)
- 1x combined event (video and vehicle) at the edge for easy integration
- Standard and OEM vehicle data, from diagnostic trouble codes to EV battery state of charge
- Minimized component duplication, low cost for combined purchase
Guard Mode Doesn’t Clock Out When the Driver Does
When the trip ends
A parked vehicle is the one fleets know the least about. Guard Mode keeps watching after the shift with nothing for a driver to switch on.
Guard Mode Duration is Configurable to be on 24/48/72 Hrs After Ignition Off
Stays alert for threats
Monitors impacts, shock and bumps; then wakes and records.
Checks in every 60 min.
Location reported, so a parked asset never drops off the map.
Stays
reachable
Firmware, configuration changes and video pulls still land overnight.
Protects the battery
Automatic step-down to deeper sleep if vehicle battery runs low. The vehicle always comes first.
Zero Partner Network
Single Device and Event File. Same Integration.
Video, vehicle data and AI events arrive as a single consolidated event through SmartAPI. This is the same integration your team already has in place.
On the device
Road AI, driver AI, livestreaming and cloud sync run concurrently without throttling, providing headroom for what comes next.
Continuous capture, selective upload
The device records continuously and manages upload delivery intelligently, so fleets get the footage they need, without the cellular bill they don’t.
One event file
Video, vehicle data and AI event metadata are bundled into a single event tied to the device, not stitched together downstream from two products.
Without firmware
The vehicle-data library is cloud-hosted, so new make/model/year vehicle-data coverage reaches deployed devices without pushing firmware.
Unchanged integration
Same SmartAPI, event handling, provisioning and OTA mechanism as the KP2, with consistency across every Xirgo video product. Zero partner rework.
